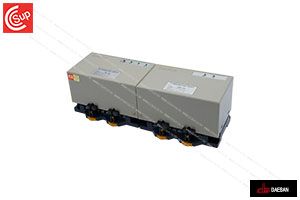

DEASAN DSF-G4 220V AC10V FLOATLESS LEVEL SWITCH DSF-G (SERIES)

DEASAN DSF-G4 220V AC10V FLOATLESS LEVEL SWITCH DSF-G (SERIES)

3,450 บาท
รหัสสินค้า:IDAE94-DSFG42AJJ
หมวดหมู่/แบรนด์:Float level switchDAESAN
สั่งซื้อสินค้า



Type DSF-
(general)		 DSF-88-H
(high sensivity)		 DSF-88
(low sensivity)		 DSF-88-L
(long distance)		 DSF-710 -720
(variable)		 DSF-88 -09
(general)		 DSF-88-H
-09-H
(high sensivity)		 DSF
-G1
-G2
-GS		 DSF
-G3		 DSF
-G4
Rating voltage AC110V,88 AC220V, A380V(50/60Hz) single,
DC(order made)		 710-AC110V
720-AC220V		 AC110V/220V(60Hz) multiple use,
DC(order made)
Allowable voltage
variable range		 85~110% of rating voltage
Voltage between electrode AC10V AC24V AC10V AC10V AC24V AC10V
Operating
resistance		 10kΩ 30kΩ 2kΩ 2.3kΩ 82kΩ 10kΩ 30kΩ 10kΩ
Return
resistance		 13kΩ 40kΩ 6kΩ 6.9kΩ 118kΩ 13kΩ 40kΩ 15kΩ
Max sense
distance 		below 500m below
45m		 below
60m		 below
2km		 below
80m		 below 500m below
45m		 below
400m
Power
consumption		 about 1.6VA about 1.8VA about 2.0VA about 2.3VA about 4.5VA
Contact capacity 250VAC, 5A
With-
stand voltage 		Electric circuit earth AC 2000V/min
Between each circuits AC 1500V/min
Ambient
temperature		 -10℃ ~ 60℃
Ambient humidity 45~80% RH
Response time In operting, below 110ms, In return below 200ms
Mounting DSF-09 : Desk type DSF-88, DSF-G : Socket type

Type Inherent resistance Applied type
City water 7 ~ 12kΩ.cm DSF-09, DSF-88, DSF-720, DSF-G
Stream water 5 ~ 17kΩ.cm DSF-09-H(High sensivity), DSF-88-H(High sensivity),
DSF-710,720, DSF-G
Well water 7 ~ 15kΩ.cm DSF-09, DSF-88, DSF-710,720, DSF-G(type)
Sea water 0.04kΩ.cm DSF-09-L(Low sensivity), DSF-88-L(Low sensivity)
