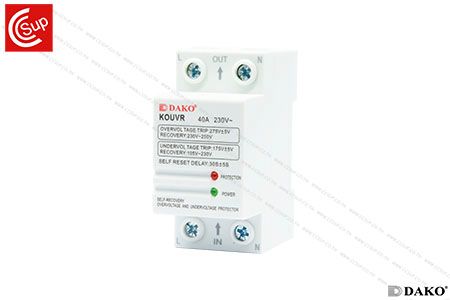

DAKO KOUVR 2P 40A Over and under voltage protector
460 บาท
รหัสสินค้า:IDAK31-KOUVR2040
หมวดหมู่/แบรนด์:Over and under voltage protectorDAKO
| Model | KNY1-40 |
| Poles | 2P |
| Rated supply voltage | AC 220V |
| Rated supply frequency | 50-60Hz |
| Rated operational current | 40A |
| Burden | AC max. 3VA |
| Overvoltage operation value | 275V |
| Overvoltage recevery | 230-250V |
| Under voltage operation value | 175V |
| Under voltage reset value | 195-230V |
| Action delay time | 1s |
| Power-up delay | 2s |
| Reset time | 30s |
| Measurement error | ≤1% |
| Operating temperature | -20℃ to +55℃ (-4°F to 131 °F) |
| Storage temperature | -35℃ to +75℃ (-22°F to 158 °F) |
| Mounting/DIN rail | Din rail EN/IEC60715 |
| Protection degree | IP40 for front panel/IP20 terminals |
| Operating position | any |
| Overvoltage category | Ⅲ |
| Polluion degree | 2 |
| Max. cabel size(mm²) | 25 |
| Tightening torque | 3 Nm |
| Dimension | 82 x 36 x 68 mm |
